Working with Annotation Edit beyond Mac Sequoia OS 15.x

Backstory

If you haven’t heard the creator and owner of Annotation Edit passed away in 2024 (maybe 2023). I had reached out to him a few times for fixes back when he was still alive and was just a great guy. (reference)

Method 1 – Partial working

Download fixed helper app

My Use case was to adjust timing of the SCC to the video, maybe fix the sync drift and a few other things, so your mileage may vary.

1. Download this file and extract the app to your Applications folder on your mac
   • This app is just an automator script that calls to the executable in the original Annotation Edit app package
2. Your Install of Annotation Edit must exist in this location
   • /Applications/Annotation Edit/Annotation Edit.app
   • If yours is in /Applications/Annotation Edit.app, then open the “Annotation_Edit_Fixed.app” with Automator and fix the path.
3. Change the association of all your Annotation Edit files (MVTT), and all caption files (SRT, SCC, VTT, etc) to the “Annotation_Edit_Fixed.app”
4. Now when you open any of those files it will work (sort of…)
5. Caveouts:
   • This version works fine with simple exports that have no extra export windows like SCC, SRT, VTT. Any with windows will not work
   • In order to quit it make sure the preview video windows is not selected
   • If you close the file and don’t quick AE it will be stuck if you try to open another file.
     • If you do click on another file and didn’t quit AE, when you do quit it, right after it will reopen with the next file you opened.
   • I order to get a video working to preview follow these steps

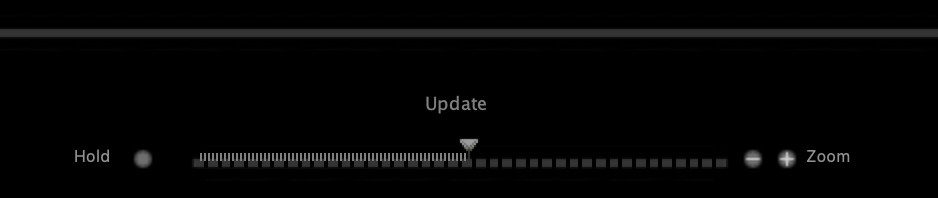

     • Choose the video (you will see “Update”, but it will never play)
       •
     • Save the MVTT file
     • Quit Annotation Edit
     • Open the MVTT file
   • Creating a new document can take a while
   • (I’ll continue to add to this list as I find them or comments roll in)

Method 2 – Virtualized with UTM

Use this method if you the caveaouts above are too great for your use case

1. Download and install UTM (link)
   • Download the the MacOS 13 Ventura IPSW file that matches your mac (link)

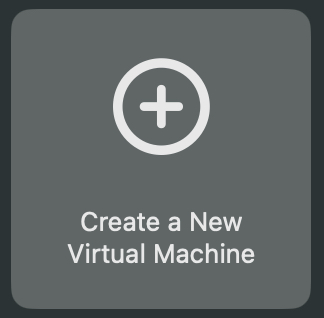

   • In UTM click “Create a New Virtual Machine”
     •

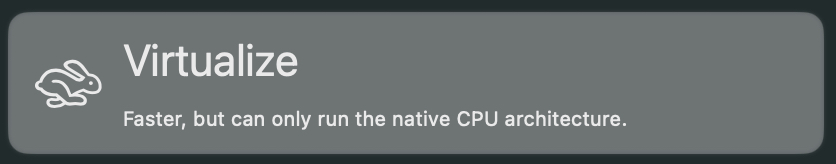

   • Then click “Virtualize”
     •

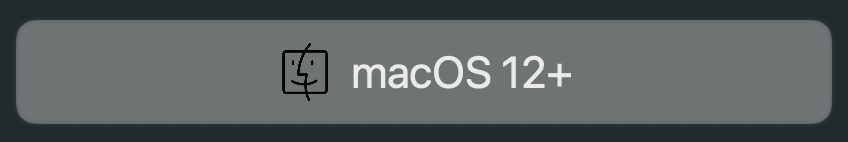

   • Click macOS 12+
     •
   • Choose the default 4GB of ram. Click Continue

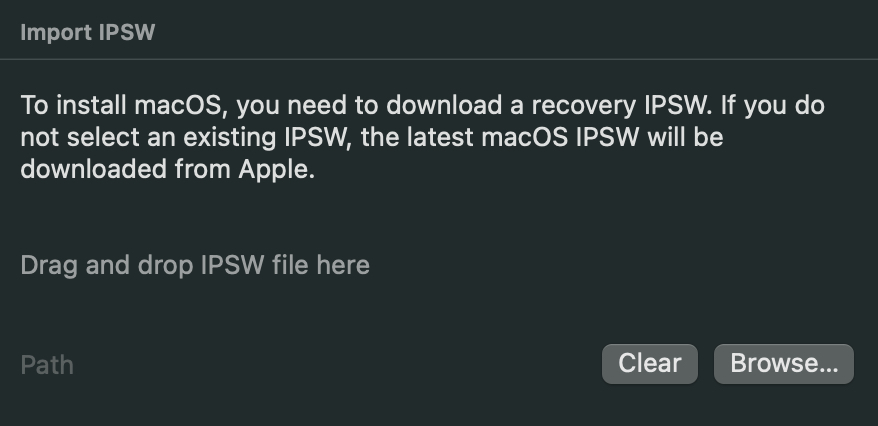

   • Drop your IPSW file you downloaded where it shows
     •
   • Then just click Continue and Save

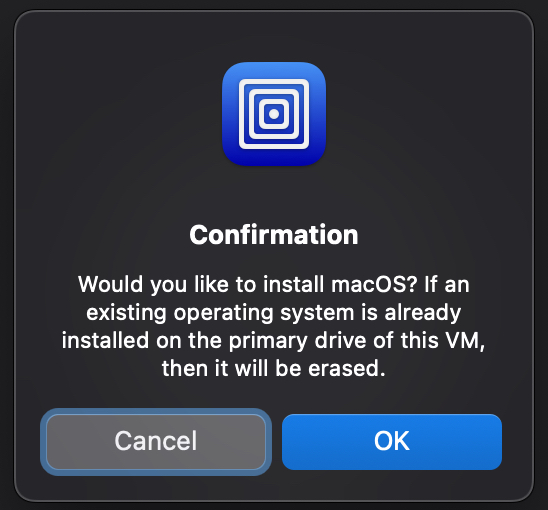

   • Now just click the Run (play button) and you will get this screen. Just click ok as it’s installing on the virtual drive you created
     •
   • Once it’s install you will need to just walk through the basic setup of Mac and get Annotation Edit installed
   • UTM has a way in the top right corner or when you edit your VM settings to use a folder from your host Mac OS, but after I pick it, it does nothing.
   • I don’t use Natural Scrolling on Mac, but since it doesn’t recognize a mouse/trackpad device I had to run this command in the terminal in the VM
     • #!bin\bash
     • defaults write NSGlobalDomain com.apple.swipescrolldirection –bool false
   • Use this post if you need a more detailed instructions

Alternatives

Haven’t tried all these options cause it’s hard to find an option that can do broadcast captions like SCC

Rougegorge Subtitles – This looks the most promising and even touts itself as “The Annotation Edit Alternative” on the website

SubtitleEdit – Doesn’t have SCC support. You have to google search to find the mac version that is the windows version running on Wine.
